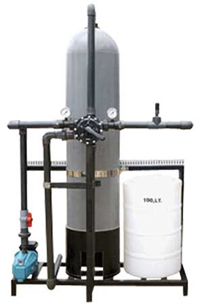

Water Softener filter system
|
- The Softeners incorporate the proven technique of counter flow regeneration.
- This technique is ideally suited to treat water with high hardness. The flow of water and the flow of brine solution, which is used for regeneration, are opposite to each other during operation.
- Ion exchange resin in sodium form is used to exchange sodium ions for hardness forming Calcium and Magnesium and thus produce Soft Water.
- After each service cycle, resins are regenerated with sodium chloride solution after which unit is ready for next service.
|
|
SALIENT FEATURES
- Softeners are attractive,compact, easy to operate and maintain.
- The pressure vessel is made up of Fibre Reinforced Plastic(FRP) and the pipes are of Poly Vinyl Chloride (PVC),valves of Acrylo Butyl Styrene (ABS).
- The Softener has a single multiport plastic valve operated by a hand lever.
|
|
SPECIFICATIONS
- One FRP pressure vessel fitted with plastic internal fittings
- One manual lever operated Multiport Valve with brine ejector.
- One complete charge of Cation exchange resin.
- One pressure gauge.
APPLICATIONS
- Pre treatment for Reverse Osmosis plants.
- Water treatment for boiler feed and cooling towers.
- Water treatment in Apartments , hotels, shopping malls ,Restaurant ,corporate parks, etc..,
- Water treatment for laundries in hotels and hospitals.
|
|
ADVANTAGES
- Light weight equipment,easy to install.
- Does not require concrete foundation
- Single lever multiport valve makes it easy to operate.
- Zero maintenance as FRP vessels and PVC pipes are corrosion resistant.
- Protects pipelines from corrosion and scale formation due to Calcium and Magnesium Salts.
- Keeps Bathrooms / kitchens clear.
|
|
|
TECHNICAL SPECIFICATIONS
| Model |
IRF 20 / MGF 20 |
IRF 30 / MGF 30 |
IRF 40 / MGF 40 |
IRF 60 / MGF 60 |
| Max.Flow(m3/h) |
3 |
3 |
6 |
9 |
| Output/Regeneration(m3) |
14 |
28 |
48 |
84 |
| Salt Regeneration (in Kgs) |
8 |
16 |
28 |
48 |
| Width(mm) |
825 |
825 |
950 |
1100 |
| Height(mm) |
1350 |
1600 |
2000 |
2000 |
| Inlet/Outlet (in mm) |
32 |
32 |
32 |
32 |
| Max.Working Pr. |
3.5 |
3.5 |
3.5 |
3.5 |
|
|
 |
|
| |
Note : The specifications of this product and its components may change without prior notice to improve performance. Please contact our offices for current product specifications.
|
| |
 |
|
|
